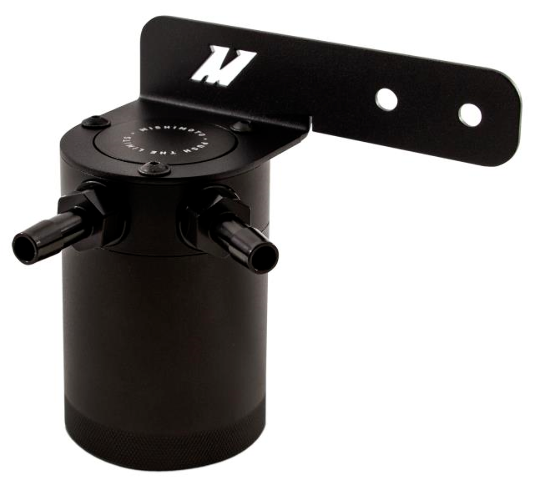

• Direct fit for 2016+ Honda Civic 1.5 Turbo
• Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
• Helps reduce carbon buildup on intake valves
• Patent pending billet 6061 aluminum can sealed with Viton™ O-rings
• Installs in under 30 minutes
• Robust, application-specific bracket mounts the can in a serviceable location
• Includes pre-molded hoses for simplified installation
• Defends intake system and essential engine components from oil blow-by
• CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
• Catch can has a 3 oz. capacity for longer servicing intervals
• Internal air diverter increases air turbulence to improve oil separation
• Helps maintain proper octane levels to reduce potential detonation

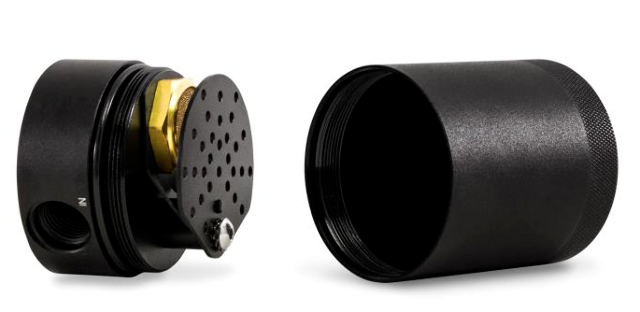

• Filter and can are fully serviceable
• Mishimoto Lifetime Warranty

Overall Height 3.8"

Inlet 3/8"

Outlet 3/8"

Drain Plug Thread Size 3/8" NPT

Capacity 3 fl oz.

Purchase Includes (1) Compact Baffled Oil Catch Can

(1) Application-Specific Mounting Bracket

(2) Direct-Fit Hoses

(2) 3/8" Aluminium Barbed Fittings

(4) Worm Gear Clamps

Mounting Hardware

Mishimoto Lifetime Warranty

Fits 2016+ Honda Civic 1.5T

2017+ Honda Civic Si

Engine Codes L15B7

Chassis Codes FC1

FC3

FK7

Material 6061 Aluminum

Install Torque Specs 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Note Only fits with left-hand drive models

After installation, Mishimoto recommends checking the contents of the Mishimoto baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle
