• Direct fit for 1989–2001 Jeep Cherokee XJ
• 90% increase in coolant capacity
• All–aluminum design with durable, TIG–welded construction
• Efficient fluid temperature reduction and superior heat dissipation
• Ideal for use in hauling, towing, and warm climates
• Includes Mishimoto M12 x 1.5 Magnetic Drain Plug to capture metallic debris and fragments in cooling system
• 100% increase in fin surface area with a thicker 2–row core design
• Provision for the older-style temperature switch and a filler neck with a pressure cap for open or closed cooling systems.
• Mishimoto Lifetime Warranty

Material Aluminum

Chassis Codes XJ

Engine Codes 4.0L AMC 242 I6, OHV

Fits Jeep Cherokee XJ, 1989-2001

Overall Height 10.65"

Overall Length 35"

Outlet 1.34"

Rows 2

Inlet 1.15"

Coolant Capacity 0.82 gal

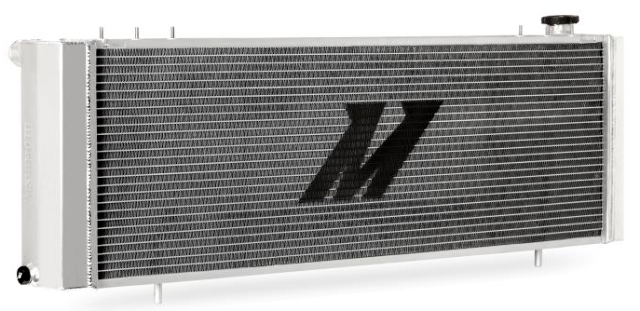

Purchase Includes (1) Mishimoto Aluminum Radiator

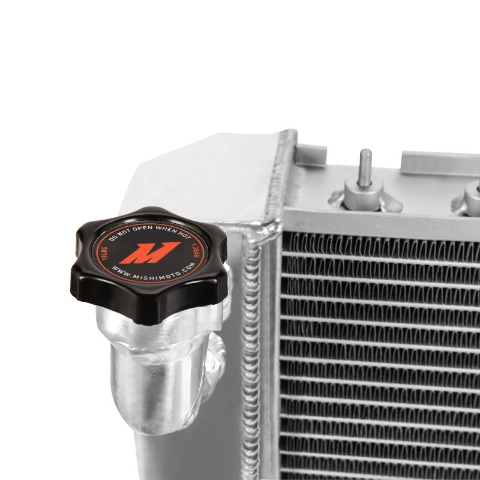

(1) Mishimoto 1.3 bar high-pressure radiator cap

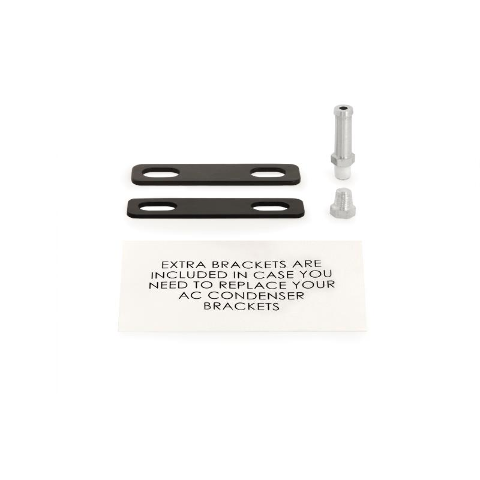

(2) AC Condenser Brackets

(1) Overflow nipple

(1) Fill neck plug

Mishimoto Lifetime Warranty

Overall Width 2.8"

Core Length 31.3"

Core Height 10.5"

Core Size 31.3" x 10.5" x 2"

Core Thickness 2"
