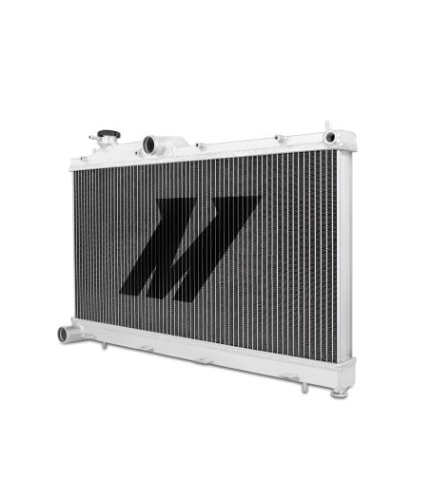

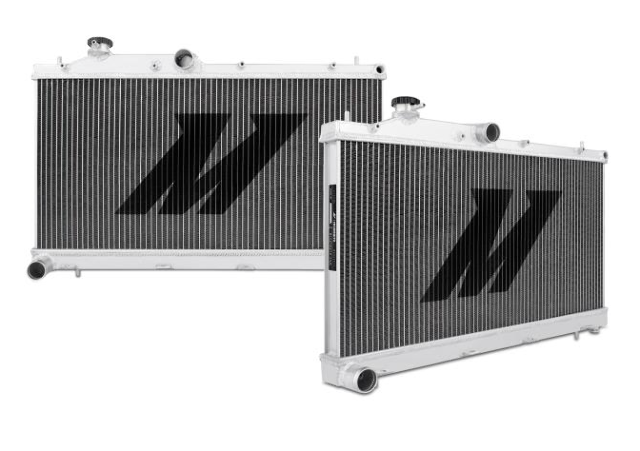

• Direct fit for the 2008-2014 WRX and 2008-2019 STI
• Full aluminum construction including durable, TIG-welded end tanks
• Two-row, 1.65" thick brazed aluminum core
• Increased fluid capacity and optimal heat dissipation
• Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course

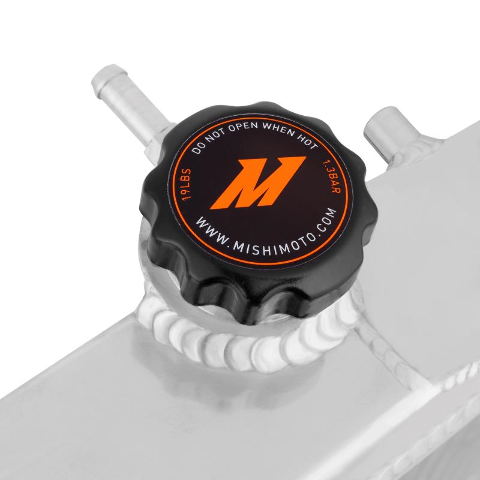

• Includes 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of engine coolant and provides a safer, more efficient system
• Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

• Mishimoto Lifetime Warranty


Material Aluminum

Note This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

*Caution*

The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.

It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact mishimoto direct.

Chassis Codes GEGH

Engine Codes EJ255EJ257

Fits 2008-2014 Subaru WRX

2008-2019 Subaru WRX STI

Overall Height 21.8"

DPI 13091/13093

Drain Plug Length 0.47"

Drain Plug Thread Size (M12) x 1.5

Overall Length 28"

Tank Wall Thickness 0.08"

Outlet 1.54"

Rows 2

Inlet 1.54"

Coolant Capacity 2.21

Dual Pass False

Purchase Includes Mishimoto Radiator

Mishimoto Radiator Cap

Overflow Nipples - 2

Magnetic Drain Plug

Mishimoto Lifetime Warranty

Overall Width 2.15"

Core Length 27.08"

Core Height 13.39"

Core Size 13.39" x 27.08"

Core Thickness 1.65"
