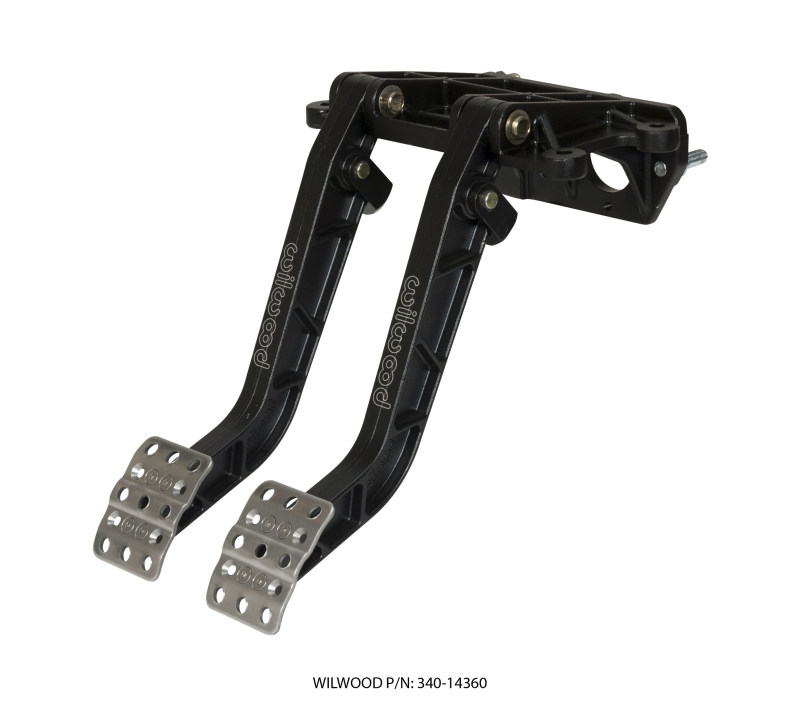

This listing is for Wilwood Adjust-Tandem Dual Pedal-Brake/Clutch-Fwd. Swing Mount-6.25:1-Blk E-Coat

Part Number 340-14360

When you see that famous Wilwood logo behind your wheels, you can be confident that your brakes will respond to the most challenging conditions with race-refined performance. Wilwood rotors, calipers, and brake pads are engineered to excel under harsh, high-temperature race conditions while reducing unsprung weight, and you can precisely tune your brakes to your application and driving style with numerous pad formulations and rotor designs. You can also put Wilwood engineering to work on the rest of your braking system, with master cylinders, proportioning valves, braided stainless steel brake lines, pedal assemblies, and complete front and rear disc brake kits.

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.50” vertical mount and will use most popular single outlet cylinders.
